Bulldozers Parts Vermont - Bulldozers, also referred to as dozers, are a type of tractor equipped with a dozer blade. Crawler tractors run on continuous track as opposed to relying on wheels, although, wheeled versions are also on the market. The dozer blade is a large metal plate fixed to the front of the bulldozer. The dozer blade is used to push large volumes of material, such gravel or dirt, during construction and alteration projects. The back end of the bulldozer often has giant metal teeth used to break up hardpacked materials.
Specifics
The track system on a common bulldozer offers phenomenal maneuvering abilities and excellent traction on uneven ground and unstable or rough surfaces. The special transmission components let the machine function with increased traction. Sinking into unstable environments is prevented as the track width evenly distributes the weight of the machine. Tracks are also available in increased widths, known as swamp tracks. These capabilities make bulldozers very popular for use in road construction, clearing land, mining and many other jobs needing powerful but stable equipment to move material.
The dozers that rely on a wheeled system typically consist of four wheels that use a 4WD system combined with an articulated hydraulic steering mechanism. The bulldozer blade relies on a hydraulic system for operation instead of a mechanical system and is located in front of the articulation joint.

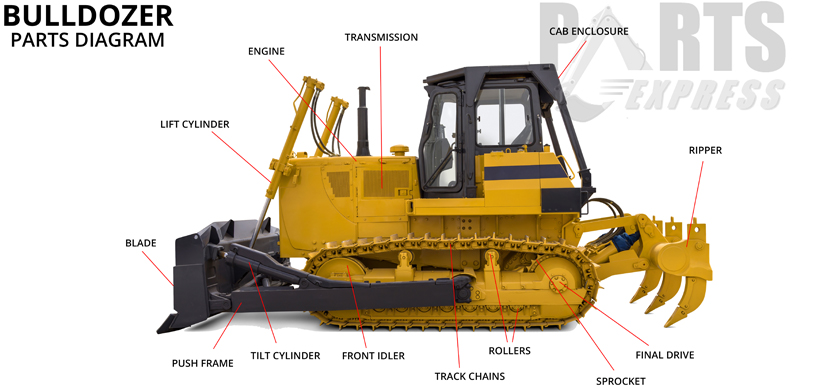

The main tools that distinguish the dozer from other construction machine are the dozer blade and the ripper.
The Dozer Blade
The bulldozer blade consists of a sizeable metal plate that is situated at the front of the machine. Its purpose is to push heavy objects and material. Snow, gravel, sand, dirt and garbage are some of the most popular items that bulldozers push around. Typically, there are 3 different kinds of dozer blades including the straight blade, the semi-U blade and the universal blade.
The universal blade, or U blade is tall, curved and has large wings on the side used to carry extra material. The S blade aka the straight blade features zero side wings or lateral curve and is used for fine earth grading applications. The semi-U blade, or S-U blade, is a combination blade which is shorter, is less curved and has side wings, but which are smaller than those on the U blade. This blade is commonly used to move large rock and boulder piles.
Usually, the dozer blade attaches to the tractor on an angle or in a horizontal fashion. Dozer blade angles are capable of being adjusted via tilt cylinders. The dozer blade is sometimes sharpened to allow for cutting of objects, such as stumps or roots. Angledozer blades are pushed forward on one side (hence the name) to clear materials away from the path of the machine. The angledozer is commonly used for snow removal on roads and highways.
A variety of bulldozers are equipped with a bull blade. The reinforced centre portion of the bulldozer is called a bull blade. This feature allows the machine to push another heavy piece of equipment known as a scraper for earthmoving applications.
Dozer blades are also used on military vehicles. Numerous military vehicles can attach a dozer blade for strategic operations including battle tanks, artillery tractors and combat engineering vehicles. When mounted to a battle tank, the dozer blade allows the tank to push obstacles and mines and to dig shelters or create combat positions. The dozer blade can help create protective barriers against explosives and artillery.
The Dozer Ripper
The tool found at the back of the bulldozer with long teeth is the dozer ripper also called the shank. Dozer rippers are available in multiple or single shank options. The single shank design is also known as a giant ripper and is preferred for large, very dense projects. The multi-shank designs are referred to simply as multi-shank rippers.
The boot refers to the tip of the shank and consists of a detachable metal piece. This design allows the boot to be replaced instead of the entire shank whenever it becomes broken or dull.
The dozer ripper is used to break up rock, concrete, earth or other solid objects and material into smaller pieces which are then easier for the bulldozer to move using the dozer blade. One machine that completes multiple tasks creates faster project completion on the job site.
In agricultural applications, the dozer ripper is used to break up the ground and rocks for planting and plowing. In some areas of Italy and New Zealand, for example, this is especially useful as the nutrient-rich, old lava flows would otherwise not be farmable given their denseness. The top layer of lava rock is loosened up with the ripper to create farmable land.
Bulldozer Adaptations
The bulldozer has transformed over the years to become useful for a variety of applications that were not originally possible with the initial design.
The initial bulldozer design was too big to work in confined locations such as mines. This limitation lead to the creation of a smaller bulldozer design which allowed for maneuvering in tight spaces. Smaller, light bulldozer models are commonly called calfdozers.
Snowier locations including ski hills rely on a lighter bulldozer version for snow removal and winter slope preparation.
Another adaptation resulted in the popular loader tractor. The loader tractor consists of replacing the dozer blade with a sizeable bucket and using hydraulic arms for raising and lowering. This adapted bulldozer model is referred to as a track loader, trackscavator or Drott to load gravel, earth and rocks into dump trucks.
A less common bulldozer attachment is a stumpbuster. A stump buster is attached at the back of the bulldozer. It consists of a single spike that protrudes horizontally to split tree stumps up for easier removal. Stump busters are commonly used by bulldozers to clear land. A brush-rake blade is also commonly used with the bulldozer in these situations.
Even with numerous bulldozer adaptations on the market, the original form of the machine is still popular in road carving, ground leveling, earthmoving and deforestation projects. Large bulldozers are mainly used to flatten terrain for construction preparation. Construction aspects are mainly completed by loader tractors and small bulldozer models.
Origins
James Cummings, a farmer, teamed up with J. Earl McLeod, a draftsman, to create the first bulldozer design in 1923. Their design was actually what is now known as the dozer blade and was meant to be attached to an existing farm tractor, used to plow fields. The first bulldozer was built soon after and the prototype is can be seen in Morrowville, Kansas’ city park. McLeod and Cummings filed a US patent on the bulldozer attachment later that year and it was granted in 1925. It was normal for tractors to run on a track system at this time. In fact, it was this earlier version of the tractor, with its superior maneuverability, that contributed to the creation of the armoured tank during World War I.
By 1929, home-made or custom-manufactured attachments began to appear on wheeled and tracked tractors alike. However, the popularity of the bulldozer attachment did not occur until the mid-1930s. Once hydraulic cylinders were added, sometime before 1940, bulldozers began to grow in popularity and by the 1950s, the term bulldozer referred to the entire machine.
Becoming popular for all types of construction applications, bulldozers grew into a variety of different stronger and larger models. Over time, large companies including Caterpillar and John Deer started manufacturing wheeled and tracked bulldozer models. Electric motors and hydraulic cylinders replaced initial cable winch mechanisms and automatic transmissions replaced manual transmission systems. More effective and accurate control systems were introduced thanks to these upgrades. Upgrades with GPS technology have been added to enhance bulldozing tasks with improved grade control.
Bulldozers began as a tractor attachment for farming applications and have grown to become one of the most useful pieces of equipment for construction, civil engineering, building and maintenance applications, mining operations and military use.
