Loader Parts Vermont - Loaders are versatile machines used in a variety of industries. These machines are responsible for loading and transporting items such as gravel, raw materials, snow, asphalt, rock, sand, grain, woodchips, demolition debris and more. Loaders move material into dump trucks, rail cars, conveyor belts and feed-hoppers. There are a variety of different loaders designed for numerous applications including scoop, skid-steer, front loader, shovel, payloader, front-end loader, skip loader, wheel-loader, and bucket loader.
Description
Loaders are a specific type of tractor outfitted with wheels or tracks with a wide, front-mounted bucket that is connected to the end of two booms or arms. This machine can scoop up material such as gravel or dirt or sand and transport it to another location without pushing it across the ground. Loaders transport stockpiled materials from the ground and deposit them into an open trench or dump truck. The assembly of the loader may feature removable or permanently mounted attachments. The bucket portion of the loader can be interchangeable with other tools. Fork attachments can be mounted to lift shipping containers or pallets. A hydraulically operated clamshell bucket can be attached for light dozer and scraper applications. A bale grappler and other devices can be attached to transport large bales of hay or straw.
A front bucket is typically part of large loaders and they are commonly called front loaders. Smaller loader tractor models can utilize a backhoe attachment and are referred to as loader backhoes, backhoe loaders or JCBs. This equipment is utilized for laying pipe, loading trucks, digging, clearing debris and similar jobs. The loader is not as efficient as other models such as an excavator or a backhoe due to its’ inefficiency of being unable to dig past its’ wheel level. Loader bucket capacity is in the range of 0.5 cubic meters to thirty-six cubic meters. The capacity of a front loader bucket is higher compared to a backhoe loader.
Most loaders consist of wheels as opposed to tracks, although, track models are available. Track models are popular in construction sites and areas where rubber wheels may be prone to damage from sharp items. Tracks feature more traction compared to wheels but wheels showcase better mobility and speed while offering less damage to paved areas. Loaders are used to transport items and digging tools around construction site locations.
Front loaders are popular for snow removal from sidewalks, narrow locations, parking lots and other areas that cannot accommodate larger machines. They can be used as snowplows with the proper attachment or can utilize a snow-basket or bucket to load snow into a dump truck or snow plow compartment.
There are special high-tip buckets available for lightweight materials including peat, woodchips and light gravel, making it easier to empty the bucket while lifted at full height. Over the past two decades, front loaders have gained popularity in urban engineering and earthmoving jobs. Different duties can be handled by a variety loader model sizes.
Large loaders do not rely on automotive steering mechanisms unlike standard tractors with a front bucket or backhoes. This type of loader accomplishes steering with a hydraulically actuated pivot point that is found between the front and rear axles, more commonly known as articulated steering. This design enables the front axle to be solid and the greater weight to be carried by the machine. There is more maneuverability offered with articulated steering models. The attachment and the front wheels rotate along the same axis, helping the operator steer the load in an arc once the machine is positioned. Once the machine is twisted to the side with a heavy load raised, there is a greater risk of turning over towards the wide side.

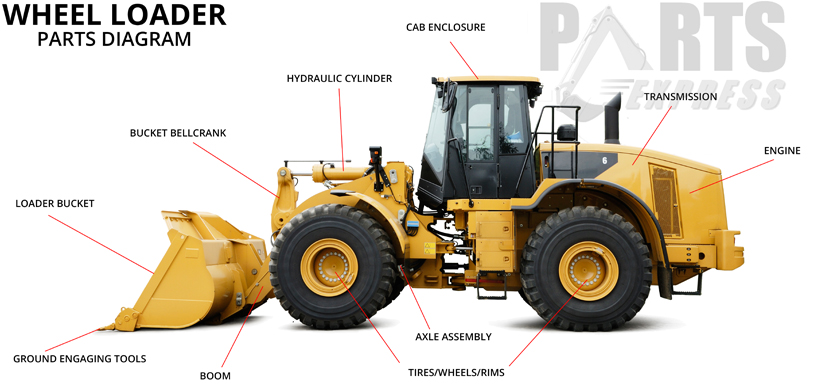

Some of the key components include hydraulic items such as pumps, motors and valves; transmission items including the gearbox, axles, pumps, motors, wheels or tracks etc., and the engine that is mostly diesel.
The loader engine controls the hydraulics and the transmission which bring movement to the front attachments such as forks, sweepers, buckets and the like. The machine is used to handle gravel, sand, manure or anything else within lifting specifications.
Wheel Loaders
The initial wheel loader was created from a tractor with a rear-wheel drive. Today’s wheel loader models consist of articulated rear and front wheels featuring the same dimensions.
Armored Wheel Loaders
Many military jobs use an armored Caterpillar 966 wheel loader to handle construction jobs and combat engineering tactics. This equipment is commonly used for building fortification, constructing bases and disassembling roadblocks. The machine is protected against rocks, stones, Molotov cocktails and gunfire with the addition of armor plating. There are specific police squads who have relied on wheel loaders for military applications to open up routes for police transport. Wheel loaders that utilize remote controls can be used by military and police departments.
Tractor Front Loaders
Tractors with 50 to 200 horsepower may use a loader addition. Tractor loaders have been manufactured to complete many farming activities. They are highly versatile and lower in cost in comparison to Telehandler equipment. Hydraulic grabs and spikes are some of the common attachments to increase efficiency with bale handling and silage. Bucket attachments are often used for agricultural jobs and pallet transportation can be facilitated with fork attachments.
Compact Front End Loaders
Popular additions to CUTs or compact utility tractors and farm tractors are front-end loaders or FELs. Smaller, compact models range in horsepower from 18 to 50, an ideal amount of power for groundskeeping and landscaping jobs. The traditional dogleg design, curved arm and semi-curved options keep front-end loaders flexible to complete a variety of jobs.
Compact utility tractors with front-end loaders are capable of doing a variety of jobs and come with numerous attachments. To facilitate better digging capacity, a tooth bar may be added to the front edge of the machine. The quick attach system or QA and quick coupler allows attachments and buckets, bale spears and pallet forks to be removed easily and attached.
The load-haul-dump or LHD machine consists of a front end loader that is beneficial in mining applications. It uses a variety of buckets and can operate either with electric motors or diesel engines.
Skid Loaders
A small engine powered loader that has a rigid frame is called a skidsteer, skid loader or skid-steer loader. This machine has lift arms that are capable of attaching to many tools. These units consist of a 4-wheeled vehicle that mechanically synchronizes on either side. The left side drive wheels are capable of being driven independently from the right side. Typically, the wheels hold a straight, fixed alignment on the body and have no separate steering mechanism.
Differential steering is responsible for conducting turning maneuvers. Each side of left and right wheel pairs operate at different speeds, allowing the machine to turn by skidding or dragging wheels of fixed-orientation over the ground. The rigid frame and strong wheels stop torsional forces from happening due to the dragging motion. High ground friction created by skid steers and tracked vehicles can destroy fragile or soft road surfaces.
Low ground friction is converted by specially designed wheels. Certain skid-steer models can accomplish pirouette turning and are capable of zero-radius turns to allow maximum maneuverability. This is valuable for applications needing an agile and compact loader. There are some varieties called multi-terrain loaders that utilize tracks as opposed to wheels.
The lift arms in skid loaders are found beside the operator and there are pivot points located behind the shoulder’s of the operator. The operators’ close proximity to the boom movement in earlier models made them not as safe as original front loader models, specifically while entering and exiting the unit. Today’s modern models have completely enclosed cabs and additional features to keep the operator safe. Similar to other front loaders, it can transport material from one location to the next via carrying material in the bucket to deposit into a trailer or truck or pushing it across the ground.
History of Tracked Loaders
A tracked loader features a chassis with a loader for loading and digging material. There have been three main design evolutions for this machine, each one improving versatility and efficiency. Being able to complete a large variety of tasks, this equipment is a popular add on to many existing fleets.
Initial tracked loaders were made from track tractors and had declined ability to dig into hard ground, similar to bulldozers of the same era. Tracked loaders were used mainly for moving stockpiled materials into rail cars and loading trucks.
Everything changed with the addition of hydraulic integration from providing power to the loader linkages and increasing overall power. The ability of the machine to offer bucket down pressure has been enabled thanks to the introduction of the hydraulic system, facilitating greater digging within compact locations. Initially, engine weight was situated on the front portion of the tracks together with other heavy loader equipment. This situation placed too much wear and tear on the front idler wheels and the undercarriage. The hydrostatic drive system became the second major design innovation to improve tracked loaders.
Swingloaders
A swingloader consists of a rigid frame and swinging boom. The boom is capable of travelling 180 degrees or more. The boom can travel up to 180 degrees or farther, depending on the model. These machines are used mainly in the railroad industry for laying rail. There are many different attachments such as magnets, buckets and forks that can be used. Different agricultural jobs utilize smaller models. Swingloaders are useful in limited space applications. This loader can lift and deposit on all sides.
